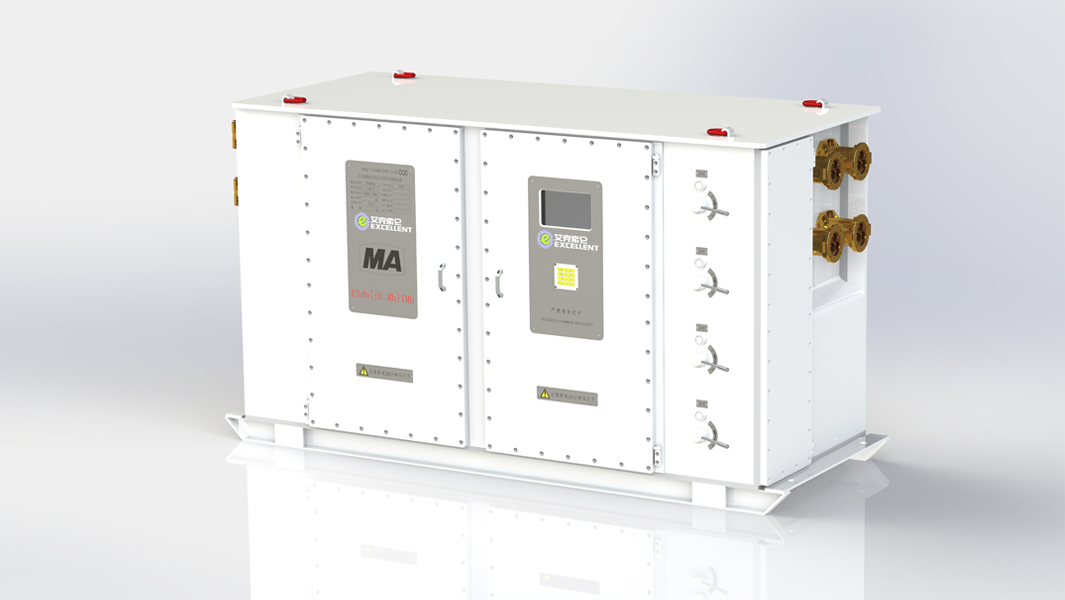

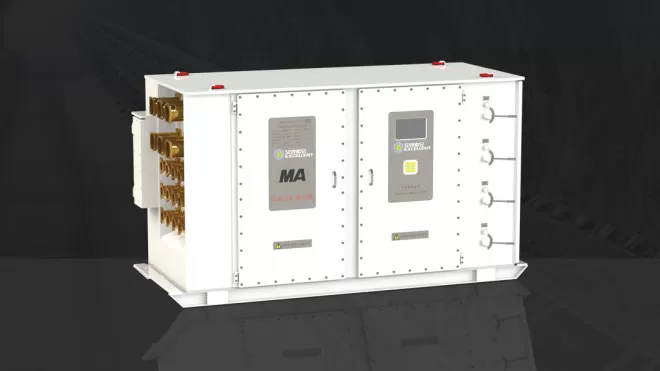

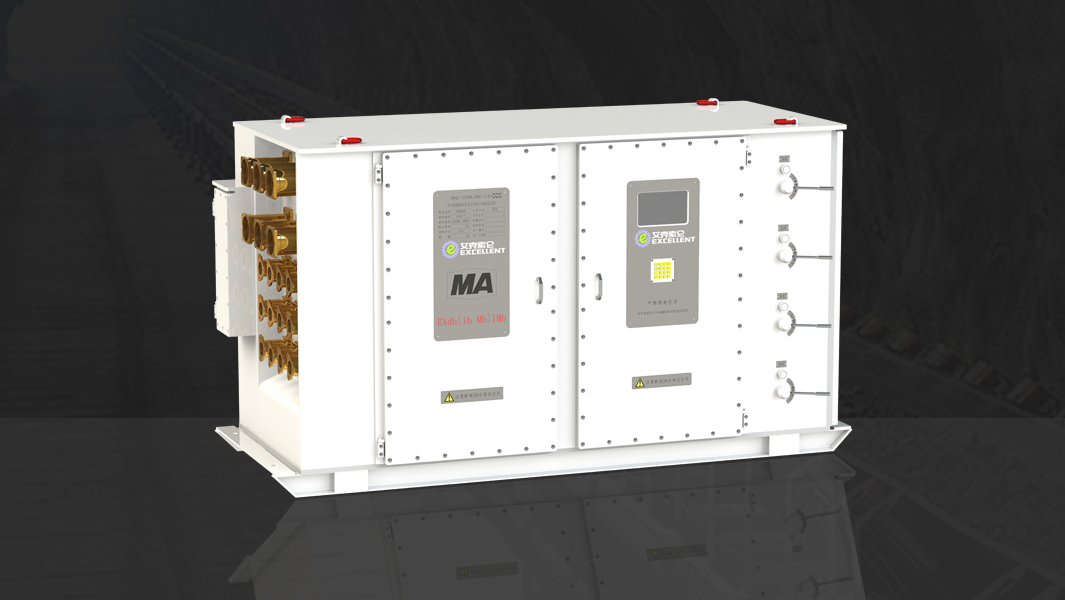

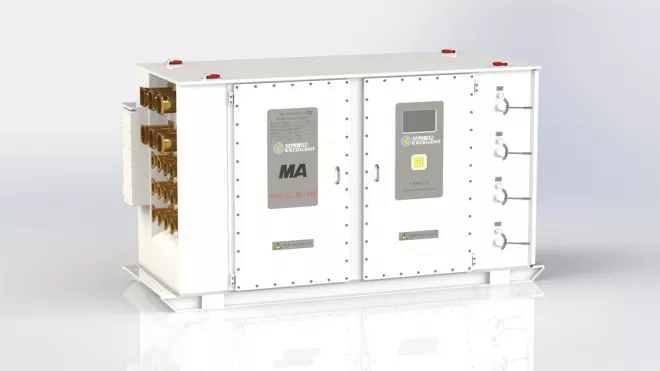

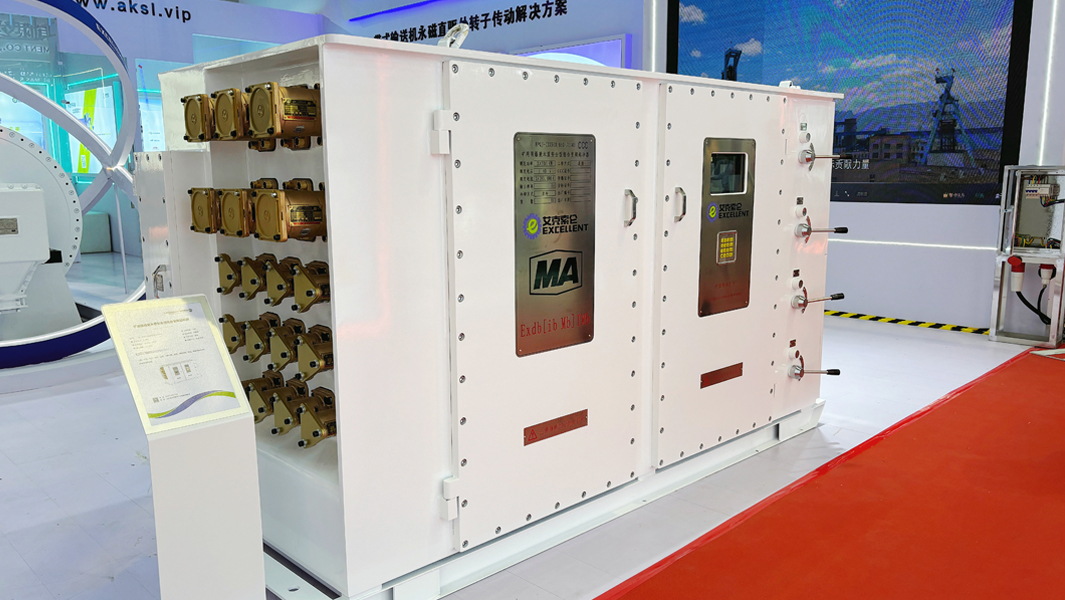

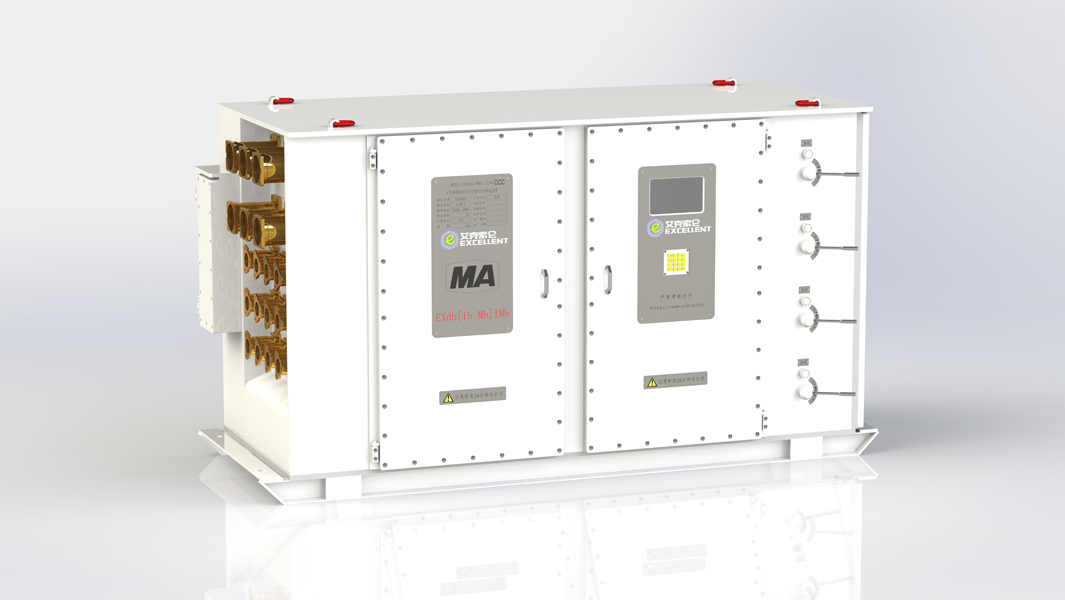

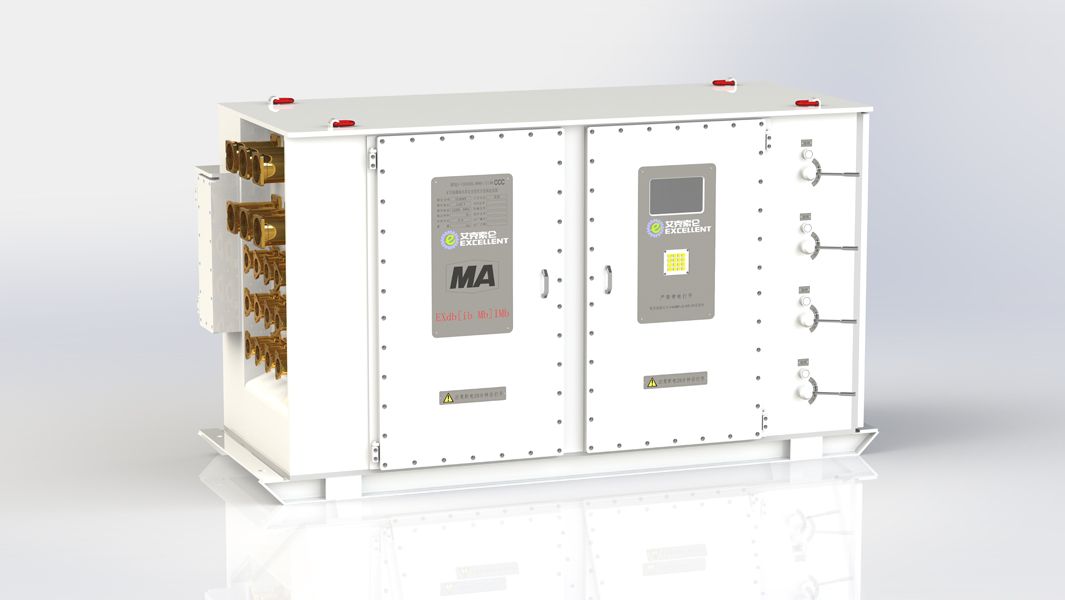

The combined variable frequency starter series products have the ability of multi-voltage multi-loop variable frequency output, multi-voltage and multi-loop power frequency output, and are compatible with 127V low-voltage power supply requirements. Product output voltage coverage: 1140V, 660V, 127V, frequency conversion, power frequency output combination is diversified. It is mainly used in multi-voltage power supply application environments such as belt conveyors and emulsion pumping stations, which can meet the needs of customized configurations.
| Main technical parameters | ||
| Rated voltage | 660V | 1140V |
| Power range | 2x55kW~2x250kW | 2x55kW~4x630kW |
| Protective function | Overload, overvoltage, undervoltage, phase loss, overheating, power balance, short circuit, leakage lockout, grounding, overheating of windings and bearings, emergency stop and other protective functions | |
| Operational characteristics | Two-quadrants / Four-quadrants | |
| Industrial frequency circuit | 14-channel power frequency | |
| Cooling method | Water cooling / Air cooling | |
It contains 14 power frequencies, which integrates the main drive of the underground belt conveyor, the cooling water tank, the braking device, the tensioning device, the tape reel device and other load drives, reducing the floor space and improving the degree of centralized control of the equipment;
Based on high-power IGBT and high-performance vector control technology, the three-level topology is adopted, and the inverter trigger signal is isolated by optical fiber, which has higher efficiency and reliability;
The HMI configuration screen adopts a humanized and parametric design, and displays the relevant parameters such as the start and stop status, voltage, current, motor temperature, fault information and historical record query of the belt conveyor in real time;
It has a variety of communication modes such as Ethernet and RS485, which is convenient to access the mine information system and realize remote control and automatic control.
